Description

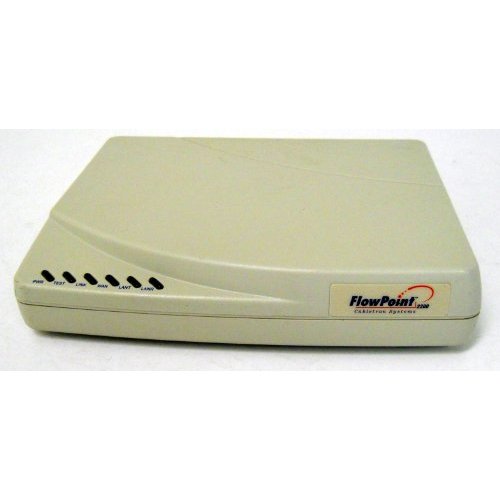

Flowpoint 2210 SDSL Modem Router
Specifications
The router operates on this FlowPoint 2210 hardware platform.

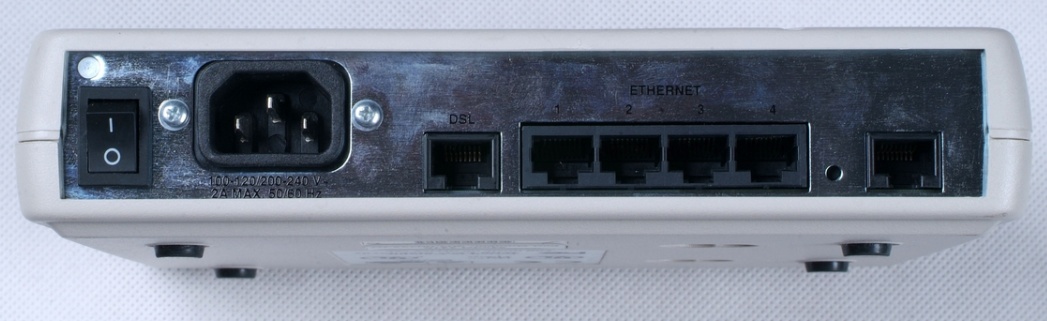

LAN Interfaces Four Ethernet ports, 10Base-T (twisted pair RJ-45)
LAN speed of 10 Mbps 100 meters
WAN Interface One Symmetrical Digital Subscriber Line (SDSL)
WAN interface (RJ-45)
DSL Modem
Specifications
2B1Q modulation 192, 384, 768, 1152, 1544 Kbps
Processor Motorola® MPC850 operating at 32 MHz
1 MB Flash Memory, 2 MB DRAM
Physical Specifications
Dimensions: 8.4 W x 7.0 D x 1.7 H inches
21.3 W x 17.8 D x 4.3 H cm
Weight: 1.5 lbs. (.68 Kg.)
APPENDIX C. HARDWARE REFERENCE31
Operating Environment
Temperature: 40°F to 105°F (5°C to 40°C)
Humidity: 20%-80%, non-condensing
Power Requirements
AC Voltage: 100 to 120 VAC, 220 to 240 VAC
Frequency: 50/60 Hz
Power Consumption: 15 W maximum
Built-in power supply – On/Off switch
Agency Approvals
Safety: UL 1950, CSA 22.2, EN60950
Emissions: FCC Part 15 Class B, EN55022/
CISPR22 Class B
Immunity: EN50082-1
Certifications: Per relevant SDSL stand
