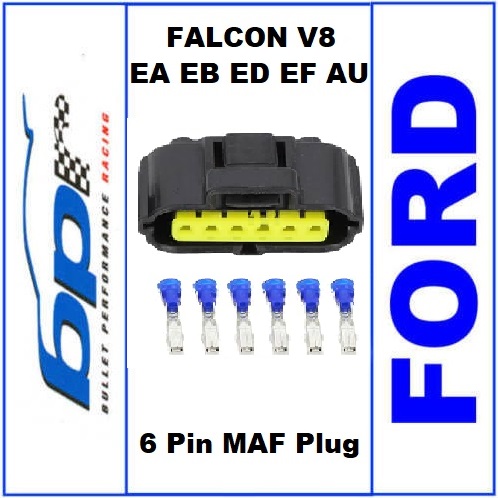

Ford 6 pin MAF connector plug – Falcon EA EB ED EF AU

Ford 4 pin / 6 pin square MAF connector plug.

Used to fit 70mm AU Falcon and 90mm Lightning MAF to EA, EB, ED, EF, or EL Falcon.

Suitable for V8 Conversion into any other vehicle eg. AC Cobra, Nissan Patrol, Hot Rod.

Comes with crimp pins, and waterproof grommets, ignore the two pins for 4 pin applications.

See the 4 & 6 Pin MAF connector pinout for wiring details.

Can also be used to fit a large diameter Aftermarket Ford MAFs

Compatible with

SCT BA2600 MAF
SCT BA3000 MAF
Ford Racing 90mm MAF
Ford 90mm LMAF
Ford 80mm LMAF

Vehicle Applications

Ford EA EB ED EF AU Falcon
Ford Lincon
Ford Mustang
Ford F150 F250

MAF Sensor Pinout

1. IAT Signal Return
2. 12v Power
3. Ground [black]
4. MAF Signal Return
5. MAF Signal
6. IAT Signal
