Description
ONBOOST PERFORMANCE BARRA CUSTOM EXHAUST MANIFOLD
FORD BA BF FG FGX XR6TURBO F6 TYPHOON

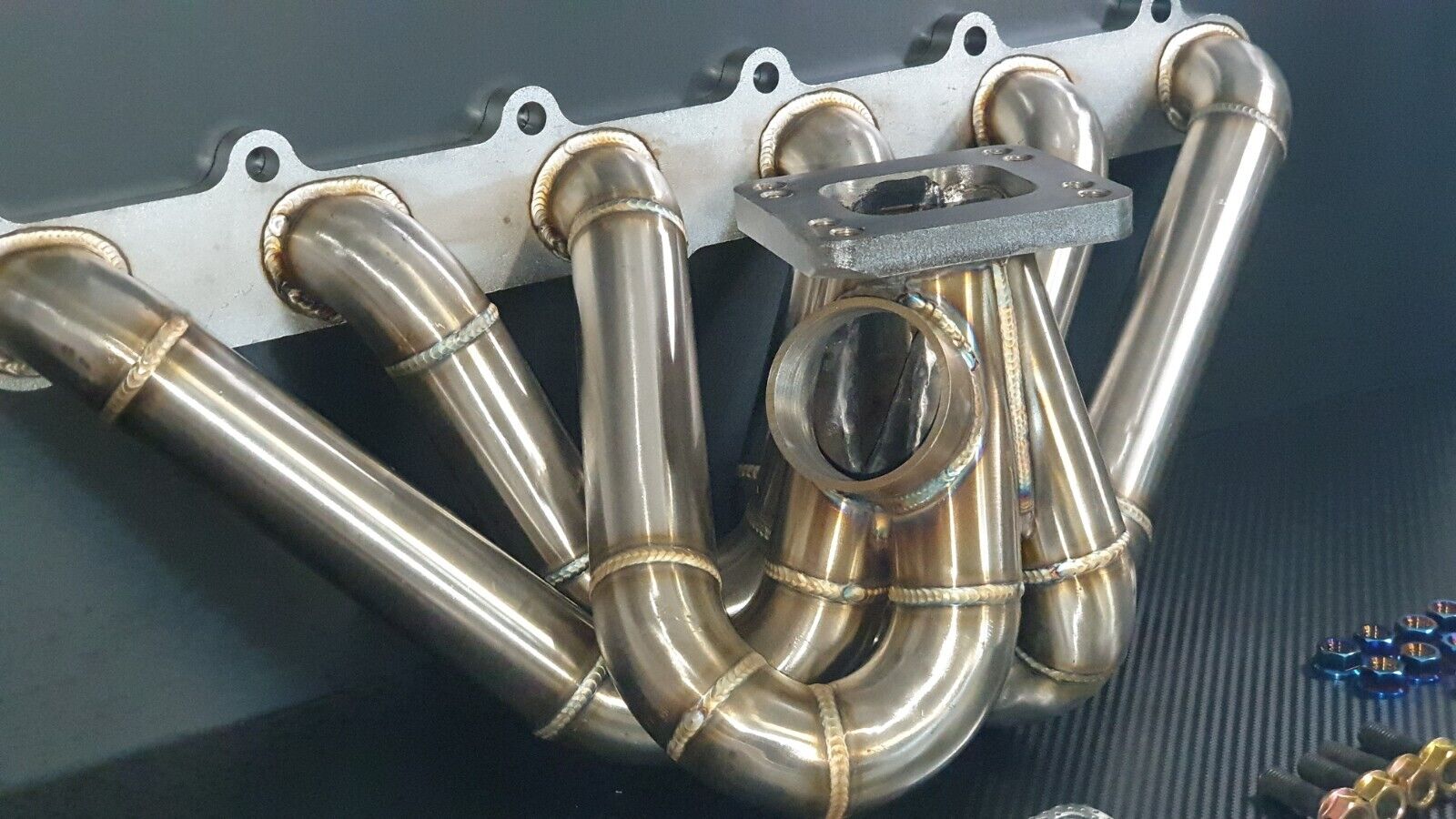

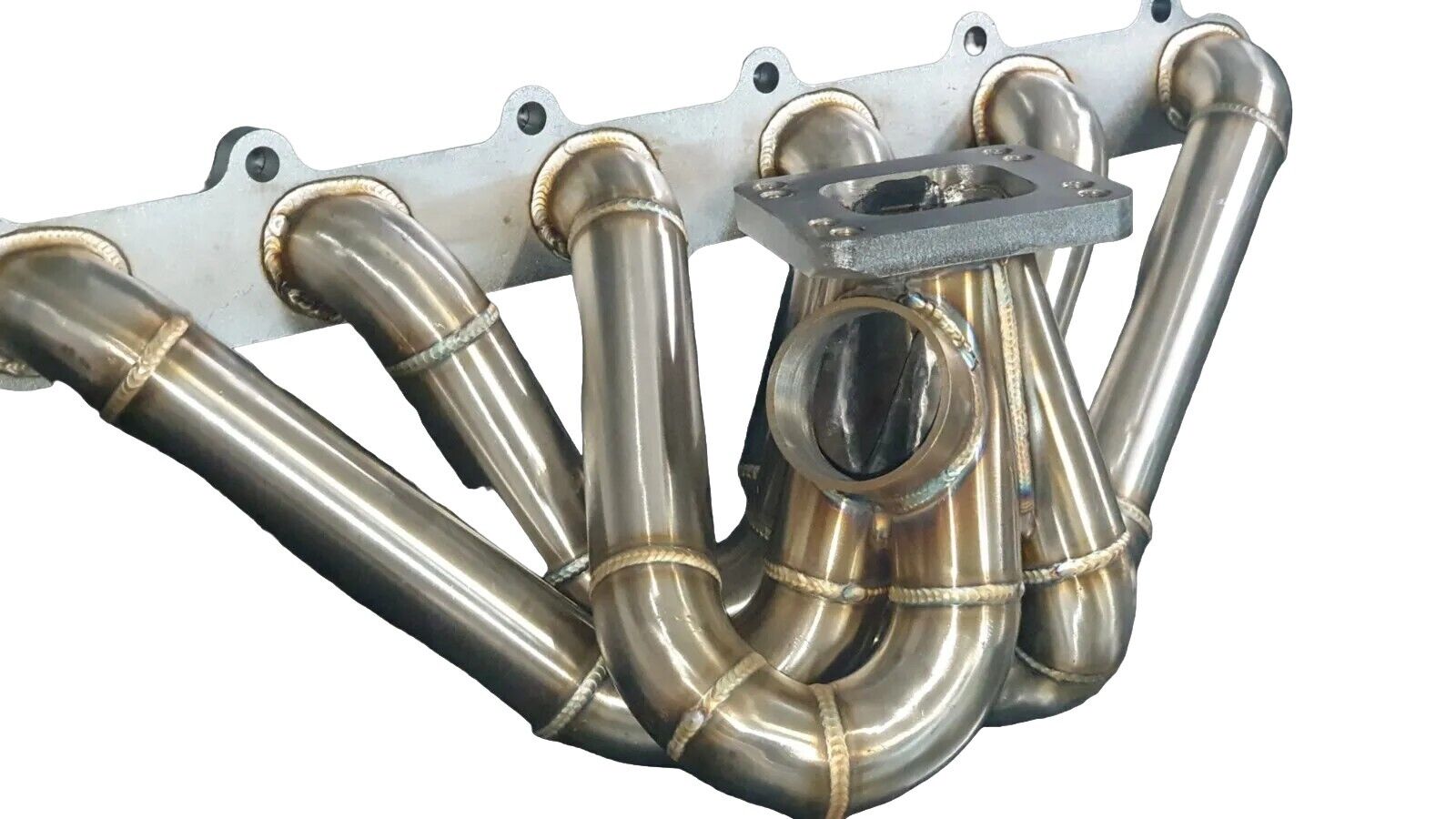

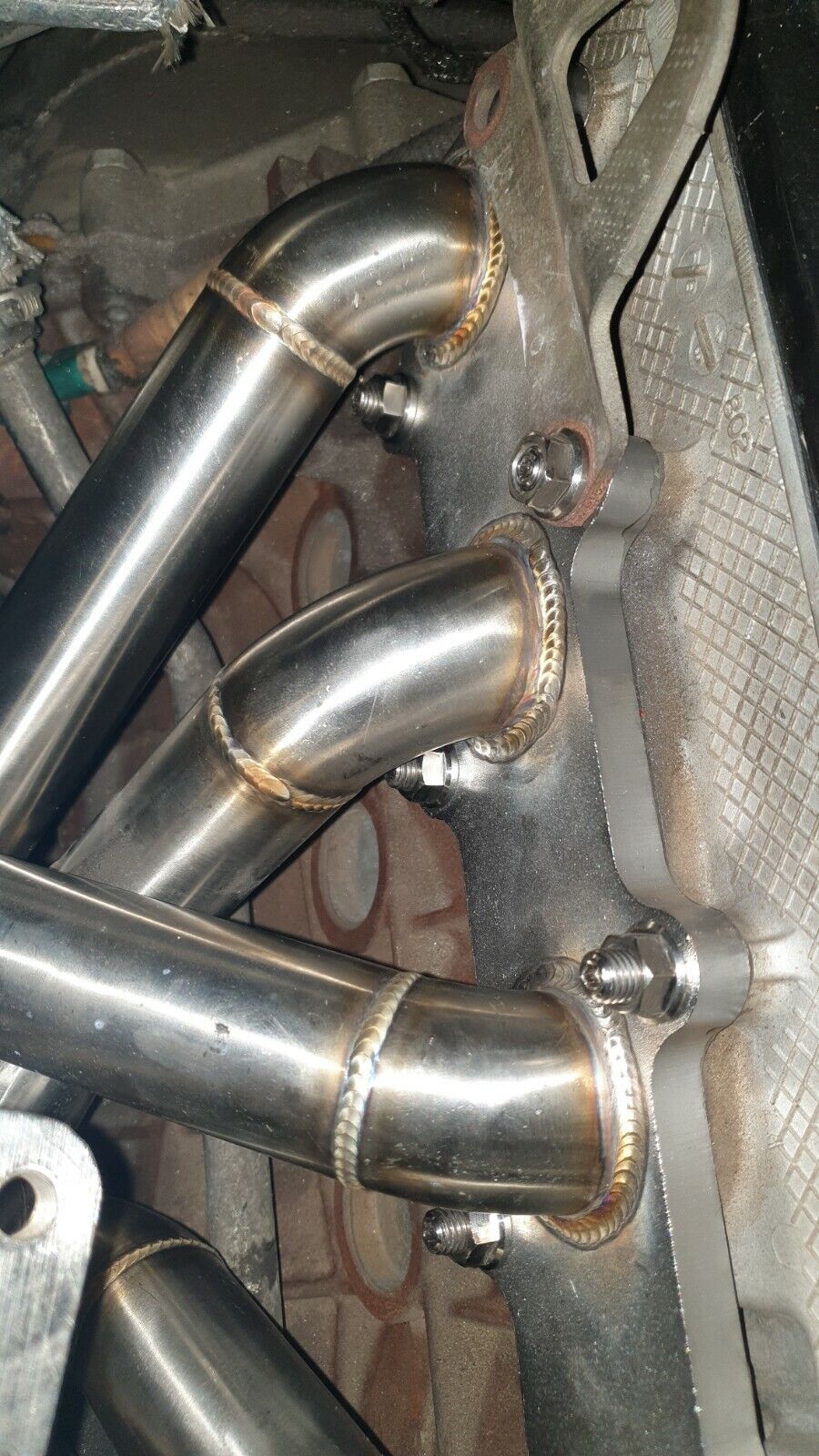

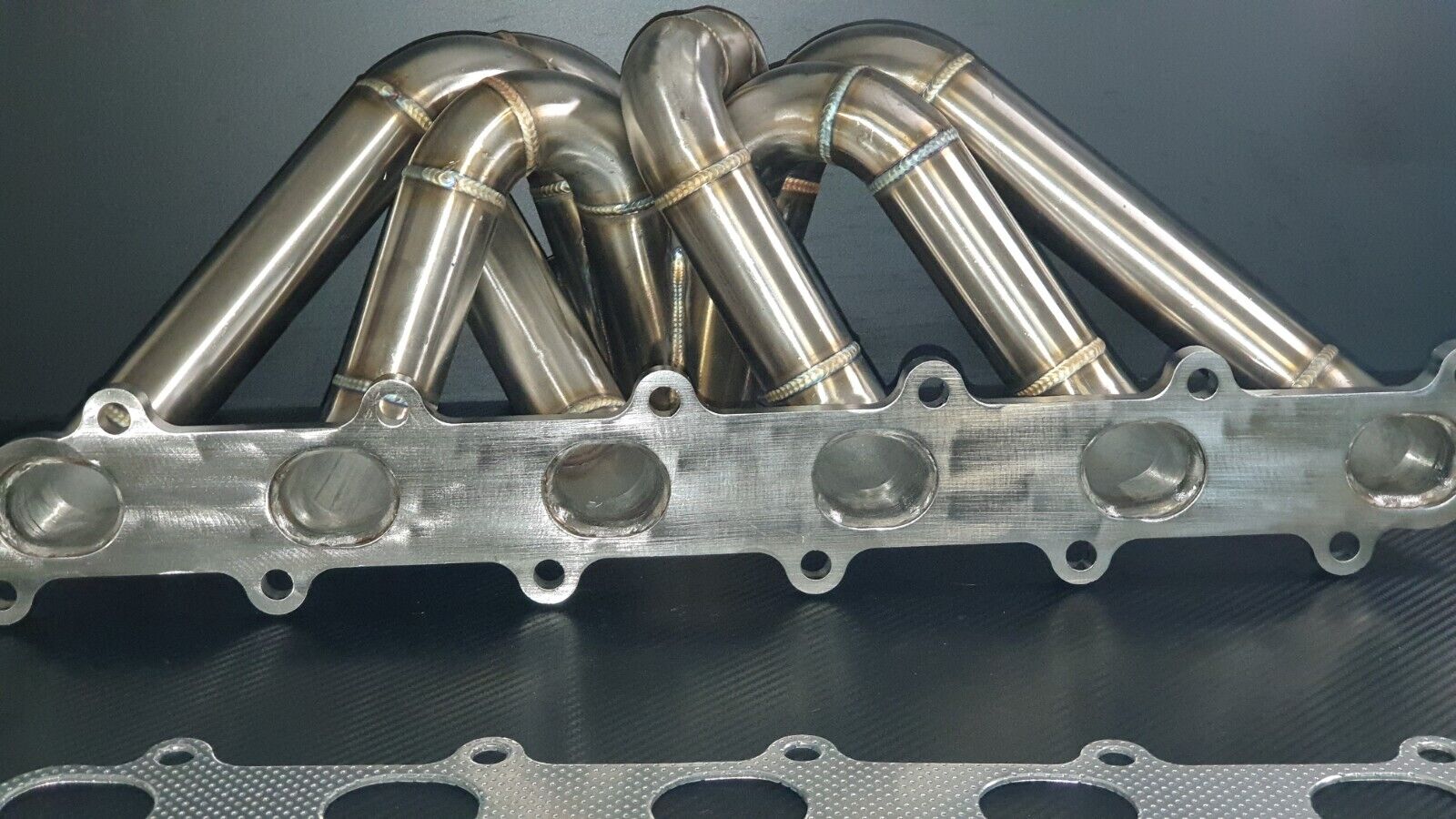

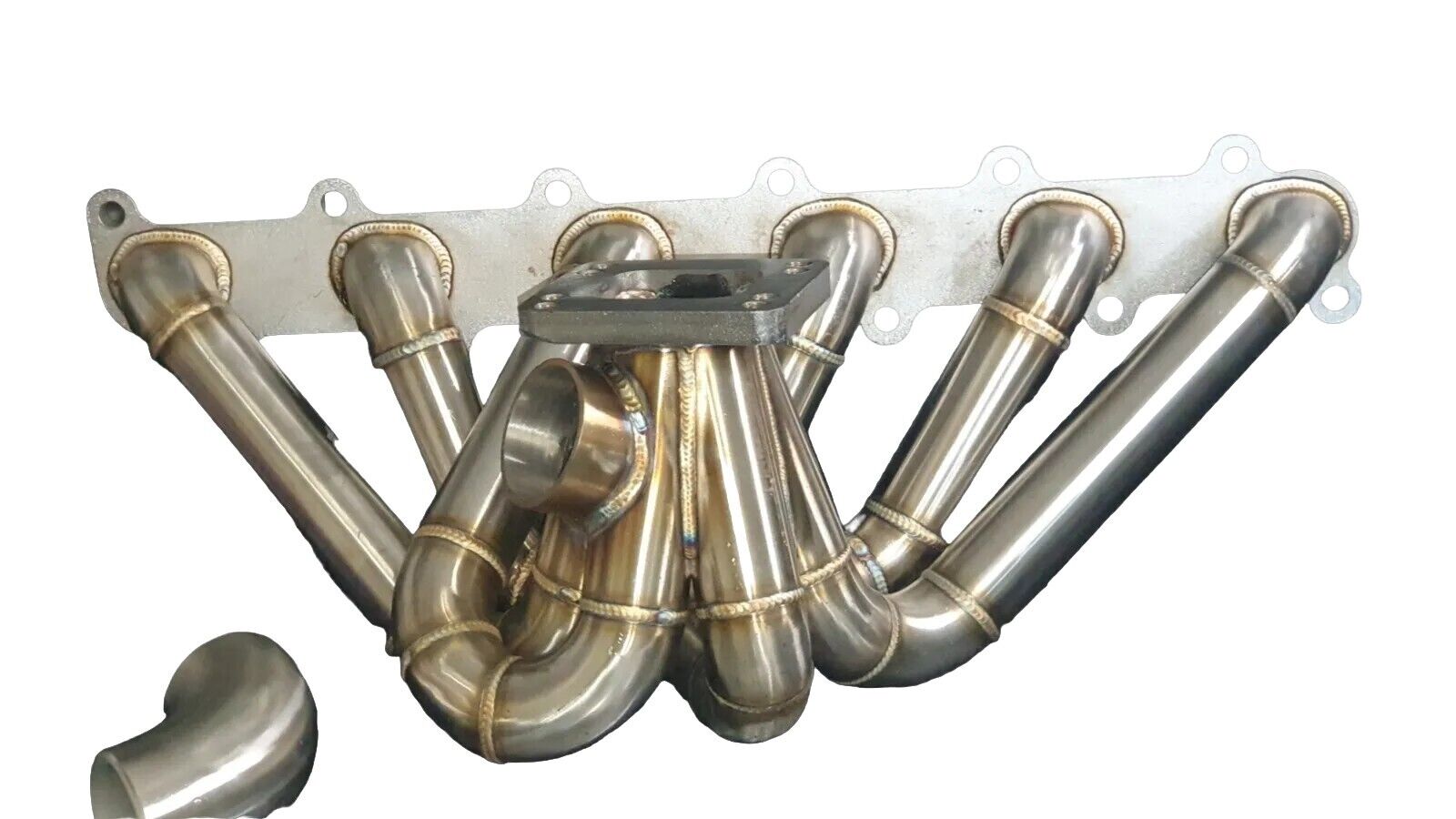

BARRA TOP MOUNT EXHAUST MANIFOLD
Features a unique T3/T4 dual-pattern turbo outlet flange.
This will give an individual the choice of starting with a T3 turbo and later upgrading to a T4 without having to purchase a brand new manifold.
The manifold also features a wastegate tube exit that will accommodate 50MM 60MM wastegate sizes from most popular brands.
Manifolds are constructed from 3mm 304ss tube and steel flanges are fully TIG-welded.
The 13.5mm thick flanges provide additional strength and rigidity. The 6-1 design provides equal pressures across each cylinder to ensure maximum flow/power and quicker spooling for larger turbos. With this design the turbo and related parts are easily accessible.

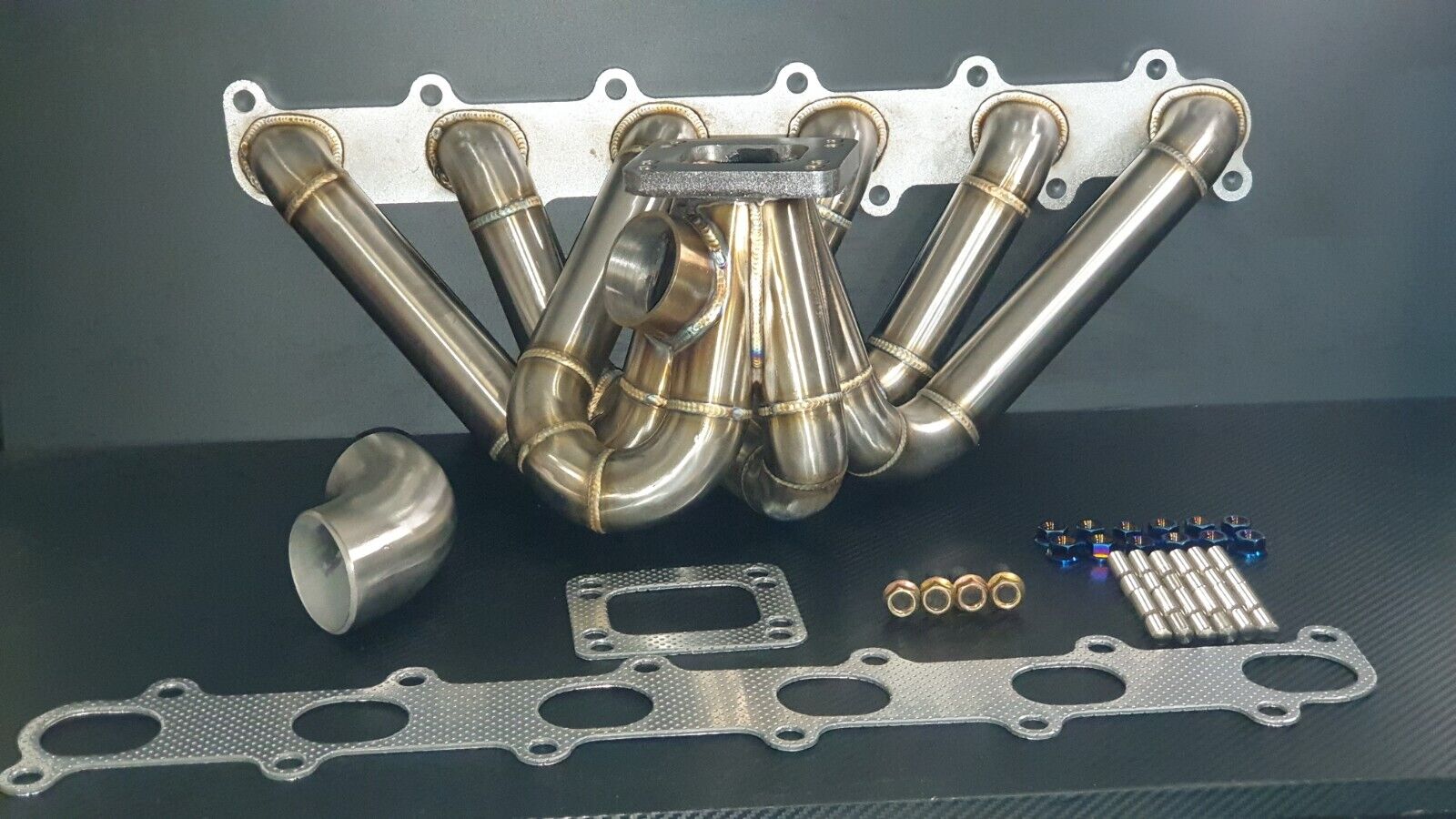

Features
– 3mm thick 304 stainless steel tube
– 13.5mm T3/T4 steel exhaust housing flange
– 13.5mm steel exhaust manifold flange hand ported for extra flow!
– 12pcs titanium studs & 12pcs blue titanium hex nuts
– Exhaust manifold gasket included
– T3/ T4 gasket
– 4x studs and nuts included
– Wastegate tube 90-degree bend included
